Product Features

Ø     Single LC receptacle optical interface

Ø     Single +3.3V power supply

Ø     Hot-pluggable QSFP28 MSA form factor

Ø     4x25G Electrical Serial Interface

Ø     Compliant with 4x28G(CEI-28G-VSR)

Ø     AC coupling of CML signals

Ø     Receiver: 4x25Gb/s PIN ROSA

Ø     Low power dissipation(Max:3W)

Ø     Built in digital diagnostic function

Ø     Operating case temperature range:0℃ to 70℃

Ø     Compliant with 100GBASE-LR4

Ø     I2C Communication Interface

Applications

Ø     100GBASE-LR4

Ø     Infiniband QDR and DDR interconnects

Ø     100G Datacom connections

Standards

Ø     Compliant with IEEE 802.3ba

Ø     Compliant with QSFP28 MSA hardware specifications

Ø     Compliant with RoHS

Functional Description

The 100G QSFP28 LR4 optical receiver integrates receive path onto one module. The receiver four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interface.

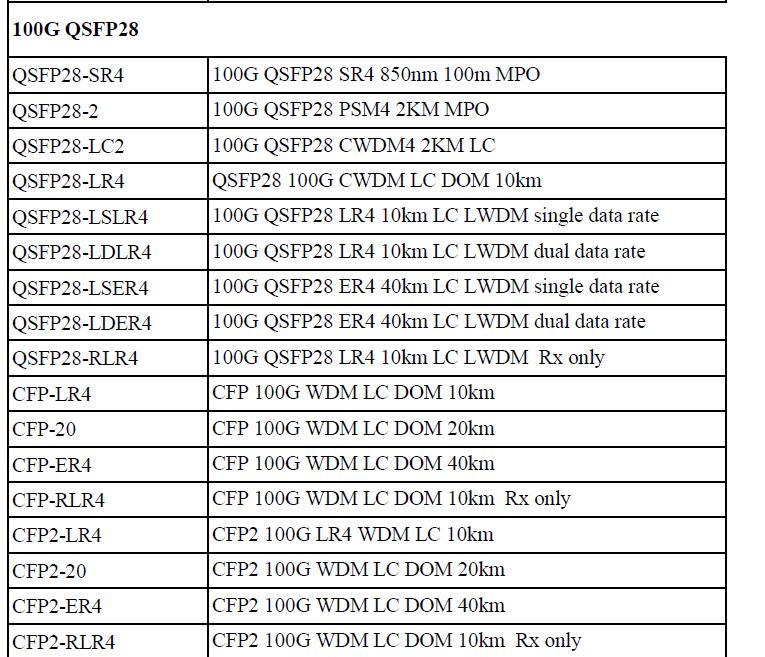

Ordering information
