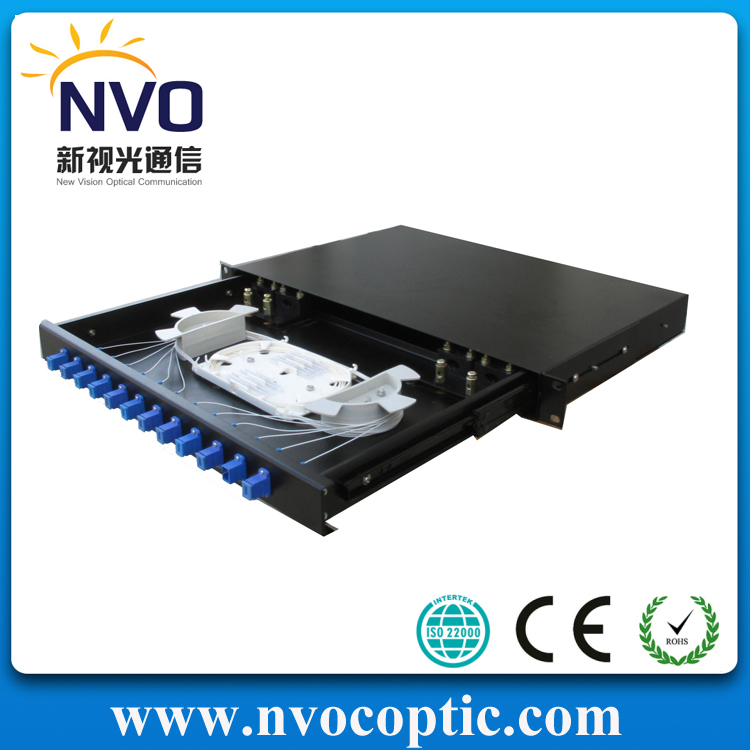

Sliding Fiber Optic Terminal Box
Features
1. Applicable in the branch connection of optical cable termination
2. 19'' standard structure
3. Cold rolled steel sheet with electrostatic spraying, light and solid, anti-rust and durable
4. Rack mount
5. Available for the installation of FC, SC, ST, LC adaptors
6. Sliding structure, easy for operation
Max capacity: 12, 24, 48 cores
Main Technical Data
1.Optical fiber winding radius:≥40mm
2.Extra loss of fiber tray: none
3.Fiber length left in tray:≥1.6m
4.Fiber capacity: 48 cores
5.Working temperature: - 400C ~ + 600C
6. Lateral pressure-resistance: 500N
7.Shock-resistance: 750N
Order information
Model |
Max capacity(cores) |
Dimension |
Remark |
NV-SC12 |
12 |
430*300*1U |
Cold rolled steel sheet, with electrostatic spraying, suitable e for FC,SC,ST,LC Adapters. |
NV-FC24 |
24 |
||
NV-SC24 |
48 |
||
NV-FC48 |
48 |
430*300*2U |
