1000M Duplex Media Converter
- Brand: NVOC
- Type: NV-MCGSM
Installation
1. Interface
RJ-45 interface
The transmission media adopts CAT5 twisted-pair with typical length of 100 meter.
It features the function of automatically identifying the through line and cross wire
interface
SC/ST fiber interface is of duplex mode type, including two interfaces, namely TX and RX.
When the two sets of transceiver are interfaced or connected to switch with fiber interface, the fiber is in cross connection, namely "TX-RX", "RX-TX" (direct butting for single optical fiber).
2. Connection
The network device (work station, hub or switch) with RJ-45 interface is connected to RJ-45 jack of optical transceiver through twisted-pair.
And the multi/single mode fiber is connected to SC/ST fiber interface of the optical transceiver.
Then switch on. The corresponding LED is on for correct connection. (See the table below for the LED indicator lamp)
Features
* In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z,1000base-SX/LX, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree.
* Hot Plug-gable & Wall-Mountable.
* Stable performance more than 50thousand hours with fault-free.
* Unique IC solution applied.
* Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades.
* Auto MDI/MDI-X.
* Auto Negotiation.
* Support flow control.
* Concentrated into EF16-D220(16slot for media converter cards) or EF14-D220(14slot for media converter standalone type) 2U rack-mount chassis.
* Stable performance more than 50 thousands hours with fault-free.
* In conformity with safety code of FCC, CE and RoHS.
Technical parameters:
1. Standard Protocol:
IEEE802.3 10 Base-T standard
IEEE 802.3u 100Base-TX/FX standard
IEEE 802.3z 1000Base-TX/FX standard
2.Connector:oneUTPRJ-45connector,oneSC/STconnector
3. Operation mode: full duplex mode or half duplex mode
4. Power supply parameter:
outside: 5V DC 2A
built-in: 110-265V AC 48VDC
5. Relative humidity: 5%-90%
6. TP cable: Cat5 UTP cable
7. Transfer fiber:
multi-mode: 50/125, 62.5/125 or 100/140μm
single mode:: 8.3/125, 8.7/125, 9/125 or 10/125μm
Specifications
|
Optical Interface |
Connector |
1x9 SC/FC/ST |
|
Data Rate |
100Mbps, 1000Mbps |
|
|
Duplex Mode |
Full duplex |
|
|
Fiber |
MM 50/125um,62.5/125um SM 9/125um |
|
|
Distance |
10/100Mbps: MM 2km,SM 25/40/60/80/100/120km 10/100/1000Mbps: MM 550m/2km,SM 20/40/60/80/100km |
|
|
Wavelength |
MM 850nm,1310nm SM 1310nm,1550nm WDM Tx1310/Rx1550nm(A side),Tx1550/Rx1310nm(B side) WDM Tx1490/Rx1550nm(A side),Tx1550/Rx1490nm(B side) |
|
|
UTP Interface |
Connector |
RJ45 |
|
Data Rate |
10/100Mbps, 10/100/1000Mbps |
|
|
Duplex Mode |
Half/full duplex |
|
|
Cable |
Cat5,Cat6 |
|
|
Power Input |
Adapter Type |
DC5V |
|
Power Built-in Type |
AC100~240V |
|
|
Power Consumption |
＜3W |
|
|
Weight |
Adapter Type |
0.39kg |
|
Power Built-in Type |
0.67kg |
|
|
Dimensions |
Adapter Type |
94*70.5*26.5cm |
|
Power Built-in Type |
140.5*111*30cm |
|
|
Temperature |
0~50℃ Operating; -40~70℃ Storage |
|
|
Humidity |
5~95%(no condensing) |
|
|
MTBF |
≥10.0000h |
|
|
Certification |
CE,FCC,RoHS |
|
Application
* Extend your Ethernet connection up to 0~120km away using fiber optics
* Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones
* Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)
* Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network
|

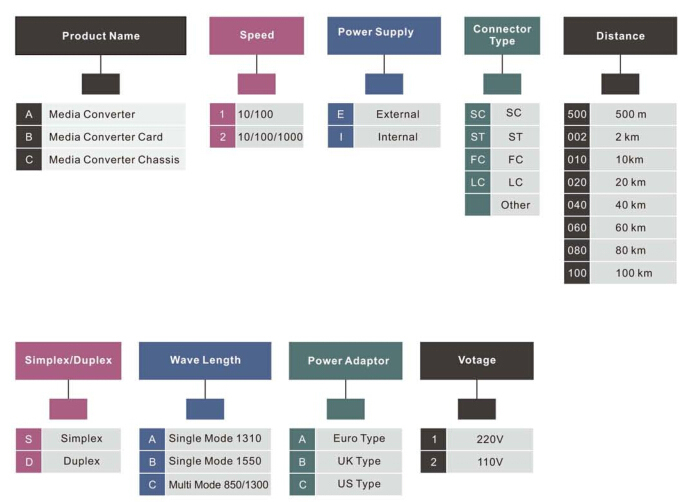

Part Number |
Rate |
Optic fiber |
Wavelength (nm) |
Power (dBm) |
Rx sensitivity (dBm) |
Reach (KM) |
Loss allowed (dBm) |
|
950MM-2 |
10/100Mbps |
MM |
1310 |
-20~-12 |
-30 |
2 |
10 |
|
950SM-25 |
10/100Mbps |
SM |
1310 |
-15~-7 |
-34 |
25 |
19 |
|
950SM-40 |
10/100Mbps |
SM |
1310 |
-9~-5 |
-36 |
40 |
27 |
|
950SM-60 |
10/100Mbps |
SM |
1310 |
-5~-2 |
-36 |
60 |
31 |
|
950SM-80 |
10/100Mbps |
SM |
1550 |
-5~0 |
-37 |
80 |
32 |
|
950SM-100 |
10/100Mbps |
SM |
1550 |
-3~0 |
-38 |
100 |
35 |
|
950SM-120 |
10/100Mbps |
SM |
1550 |
0~5 |
-38 |
120 |
38 |
|
950GM |
10/100/1000Mbps |
MM |
850 |
-9.5~4 |
-17 |
0.55 |
8 |
|
950GS-2 |
10/100/1000Mbps |
MM |
1310 |
-9~-3 |
-21 |
10 |
12 |
|
950GS-20 |
10/100/1000Mbps |
SM |
1310 |
-6~-1 |
-21 |
20 |
15 |
|
950GS-40 |
10/100/1000Mbps |
SM |
1310 |
-5~0 |
-24 |
30 |
20 |
|
950GS-60 |
10/100/1000Mbps |
SM |
1550 |
-5~0 |
-25 |
50 |
20 |
|
950GS-80 |
10/100/1000Mbps |
SM |
1550 |
-2~3 |
-25 |
80 |
25 |
|
950SM-2A/B |
10/100Mbps |
MM |
1310/1550 |
-14~-8 |
-30 |
2 |
17 |
|
950SM-25A/B |
10/100Mbps |
SM |
1310/1550 |
-8~-3 |
-33 |
25 |
25 |
|
950SM-40A/B |
10/100Mbps |
SM |
1310/1550 |
-8~-3 |
-33 |
40 |
25 |
|
950SM-60A/B |
10/100Mbps |
SM |
1310/1550 |
-5~0 |
-37 |
60 |
30 |
|
950SM-80A/B |
10/100Mbps |
SM |
1490/1550 |
-0~0 |
-39 |
80 |
34 |
|
950SM-100A/B |
10/100Mbps |
SM |
1490/1550 |
-0~0 |
-39 |
100 |
34 |
|
950SM-120A/B |
10/100Mbps |
SM |
1490/1550 |
-0~0 |
-39 |
120 |
34 |
|
950GS-10A/B |
10/100/1000Mbps |
SM |
1310/1550 |
-6~-1 |
-22 |
10 |
22 |
|
950GS-20A/B |
10/100/1000Mbps |
SM |
1310/1550 |
-6~-1 |
-22 |
20 |
22 |
|
950GS-40A/B |
10/100/1000Mbps |
SM |
1490/1550 |
-6~-1 |
-22 |
40 |
22 |
|
950GS-60A/B |
10/100/1000Mbps |
SM |
1490/1550 |
-6~-1 |
-22 |
60 |
22 |
|
950GS-80A/B |
10/100/1000Mbps |
SM |
1490/1550 |
0~2 |
-25 |
80 |
25 |
