100Gbps QSFP28 AOC
- Brand: NVOC
- Type: NV-100Gbps QSFP28
Ø Low-latency and high-speed interconnections for high performance computing(HPC)
Ø 100G Ethernet
Ø Other high-throughput data transmission network
2. Features
Ø Quad Small Form-factor Pluggable (QSFP)
Ø Maximum Aggregate Data Rate 100Gbps
Ø EDR, FDR, QDR, DDR, SDR (Infiniband)
Ø 10/25/40/100G Ethernet
Ø Bi-directional parallel link
Ø BER<1e-12 From 0 to 50 degree case temp
Ø CDR no/off automatically
Ø 10/14/25/28Gb/s per lane, x4 channels
Ø Up to 70m (OM3)
Ø Up to 100m (OM4)
Ø Low power consumption
Ø Round multi-mode fiber array
Ø 850nm VCSEL four array
Ø PIN diode four array
Ø Hot-Pluggable
Ø I2C management interface
Ø 3.3V power supply voltage
Ø Maximum 2W power consumption
3. Description
A7DM3-XXX series are active optical cables (AOC) that allow bi-directional 100Gbps transmission suitable for high performance computing (HPC) clustering and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.
4. Standard
Ø Compliant with IEEE 802.3bm 100GBASE SR4
Ø Compliant with InfiniBand EDR,FDR,QDR,DDR,SDR
Ø Compliant with QSFP MSA(SFF-8665,SFF-8661)
Ø Compliant with QSFP Common Management SFF-8636
Ø RoHS Compliant:lead-free

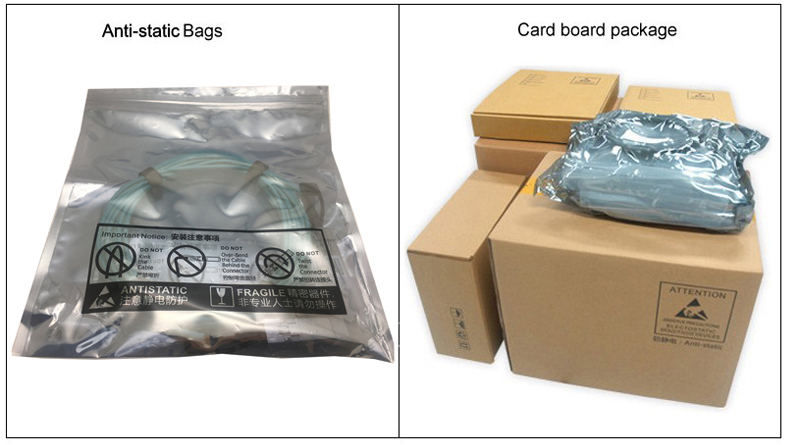

5.Package

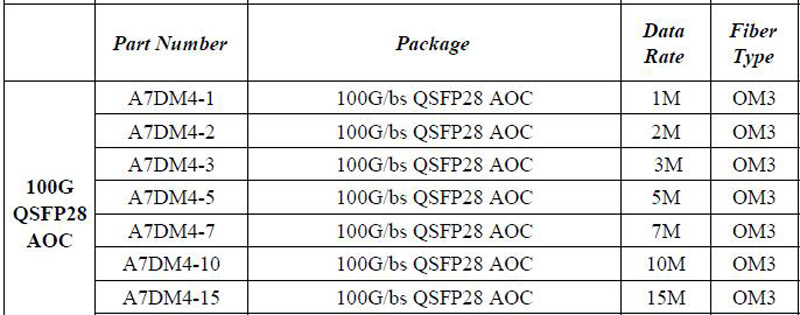

6.Ordering Information
