40Gbps QSFP+ AOC

  View:
  • Brand:    NVOC
  • Type:    NV-40Gbps QSFP+ AOC
  • Order Online
Introduction
 1. Applications

Ø  Low-latency and high-speed interconnections for high performance computing(HPC)

Ø  40G Ethernet SR4

Ø  Other high-throughput data transmission network

Ø  Storage area Network(SAN)

2. Features

Ø  Quad Small Form-factor Pluggable (QSFP)

Ø  40GBASE-SR4 compliant

Ø  QDR, DDR, SDR (Infiniband) compliant

Ø  Bi-directional parallel link

Ø  10.3125Gb/s per lane, x4 channels

Ø  Up to 100m

Ø  Low profile connectors

Ø  Low power consumption

Ø  Bundle multi-mode fiber array

Ø  850nm VCSEL four array

Ø  PIN diode four array

Ø  Hot-Pluggable

Ø  I2C management interface

Ø  From 0 to 70 degree case temperature

Ø  3.3V power supply voltage

Ø  Electrical 38-pin connector

3. Description

4CMX-XXX series are active optical cables (AOC) that allows bi-directional 40Gbps transmission suitable for Ethernet 40GBASE-SR4 and InfiniBand QDR application and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.

4. standard

Ø  Compliant with IEEE 802.3ba-2010,Annex 86A for 40GBASE-SR4

Ø  Compliant with InfiniBand EDR,FDR,QDR,DDR,SDR

Ø  Compliant with QSFP MSA(SFF-8436)

Ø  RoHS Compliant:lead-free

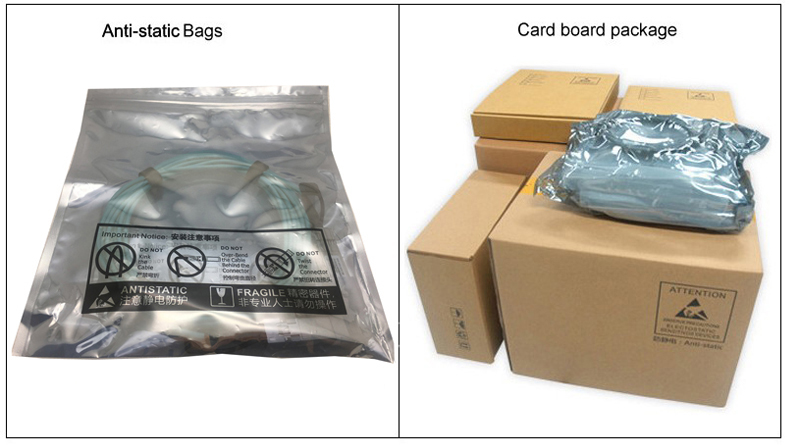

5.Package

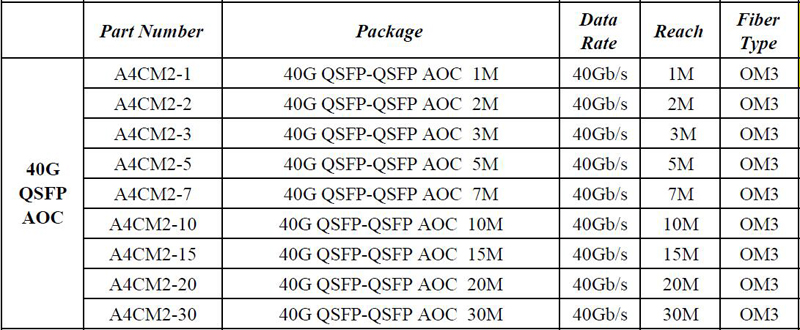

6.Ordering Information
