XFP-SR

10Gbps XFP Transceiver, 300m Reach

Features

►Supports 9.95Gbps to 10.5Gbps bit rates

►Maximum link length of 300m (50um,MMF,2000MHz.Km)

►850nm VCSEL laser and PIN receiver

►Low power consumption <1.5W

►+5V, +3.3V power supply

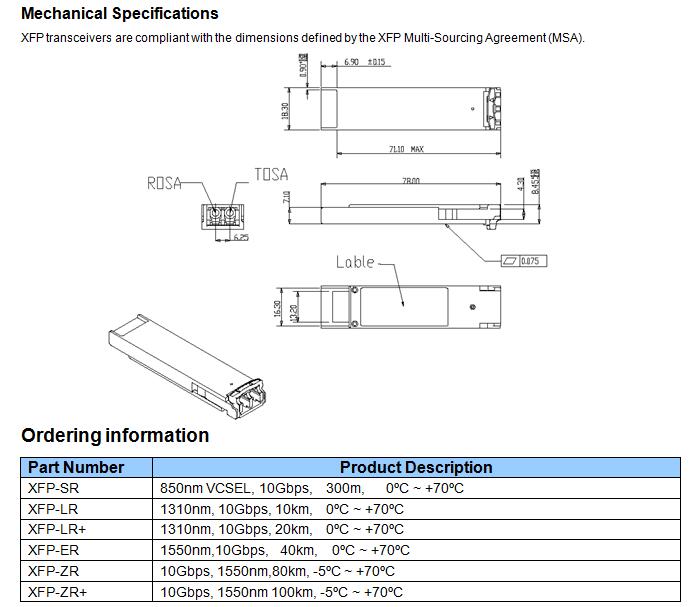

►XFP MSA package with duplex LC connector

►XFI electrical interface

►No reference clock required

►Compatible with RoHS

►Excellent EMI performance

►Built-in digital diagnostic functions

►Temperature range: 0℃ to +70℃

►High reliability

Applications

►10GBASE-SR/SW 10G Ethernet

►1200-Mx-SN-I 10G Fibre Channel

►Other optical links

Description

XFP-SR is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), and transmission distance up to 300m on 50μm MMF (2000MHz.km).

The transceiver module comprises a transmitter with 850nm a vertical cavity surface emitting (VCSEL) laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.

 Package
