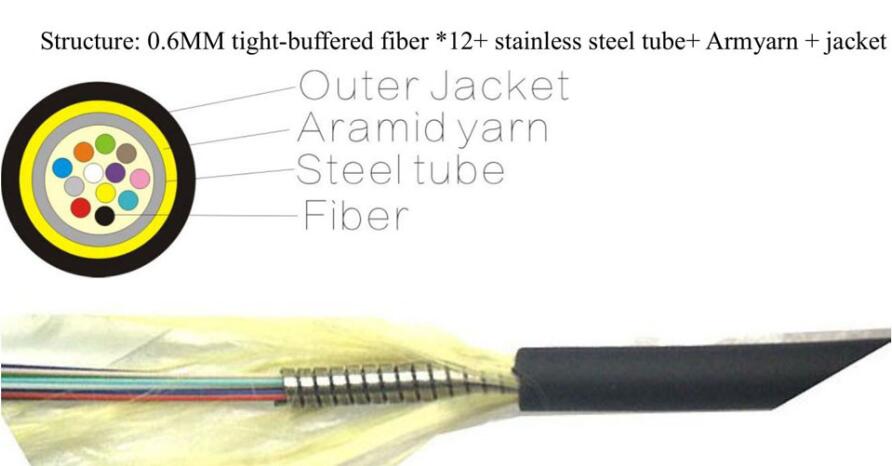

12C MM Amored Patch Cord
- Brand: NVOC
- Type: NV-12C MM
Application
Fiber Optic Telecommunications
FTTH (Fiber To The Home)
CATV & CCTV
Data Processing Networks
Telecom Equipment
Local Area Networks
Patchcord Features
Low Insertion and Return Loss
Various Connector Type
Standard Connector Housing
Using the JC Com Standard Zirconia Ferrule
Specification|
Connector |
SC,FC,LC,ST,MU,E2000,MTRJ |
||
|
Polishing |
SM/UPC |
MM/PC |
SM/APC |
|
Insertion Loss (max) |
≤0.30dB |
≤0.30dB |
≤0.30dB |
|
Return Loss (min) |
≥50 dB |
≥35 dB |
≥60 dB |
|
Tensile Strength(N) |
Longterm 100;short term:200 |
||
|
Crush Resistance(N/100mm) |
Longterm 3000;short term:5000 |
||
|
Durability |
<0.20 dB typical change, 500 matings |
||
|
Repeatability |
≤0.1dB |
||
|
Storage , Operating Temperature [°C] |
-40~+85 |
||
*Patch cord or pigtail
*Fiber type:9/125um(SM),50/125um(MM),62.5/125um(MM)
*Endface type: PC, APC,UPC
*Cable number:duplex,simplex
*Cable diameter:0.9mm,2.0mm,3.0mm......
*Cable length: customized
*Cable material: PVC,LSZH,OFNR,OFNP
