100Gbps QSFP28 to 4*SFP28 AOC
- Brand: NVOC
- Type: NV-100Gbps QSFP28 to 4*SFP28
Ø Network Switch Manufacturers supporting 100/25 G
Ø Server Manufacturers supporting 100/25 G
Ø Data Centers with 25G requirements with Aggregation Architectures
2. Features
Ø Supports 100G to 25G Ethernet interoperability
Ø Aggregate 4 discrete SFP28 25G channels into
single parallel QSFP28 100G interface
Ø Maximum link length of 100m links on OM3 multimode fiber Or
150m links on OM4 multimode fiber
Ø Electrically hot-pluggable
Ø Electrical interface compliant to QSFP28 connector (SFF-8679&8436)
and SFP28 connectors (SFF-8431&8432)
Ø Low profile connectors
Ø Low power consumption
Ø Bundle multi-mode fiber array
Ø 850nm VCSEL four array
Ø PIN diode four array
Ø Hot-Pluggable
Ø I2C management interface
Ø From 0 to 70 degree case temperature
Ø 3.3V power supply voltage
Ø Electrical 38-pin connector
3. Description
AADMX-XXX series are active optical cables (AOC) that allows bi-directional 100Gbps to 25Gbps transmission suitable for high performance computing(HPC)clustering and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.
4. standard
Ø Compliant with IEEE 802.3ba-2010,Annex 86A for 100GBASE-SR4
Ø Compliant with InfiniBand EDR,FDR,QDR,DDR,SDR
Ø Compliant with QSFP MSA(SFF-8436)
Ø Compliant with SFP MSA(SFF-8431)
Ø RoHS Compliant:lead-free

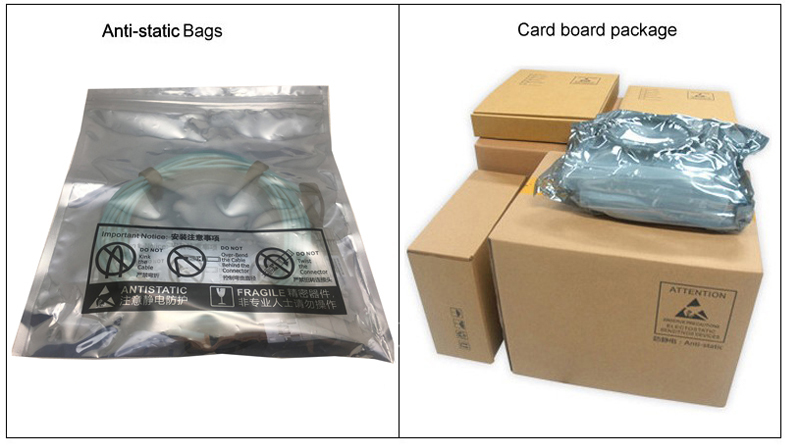

5.Package

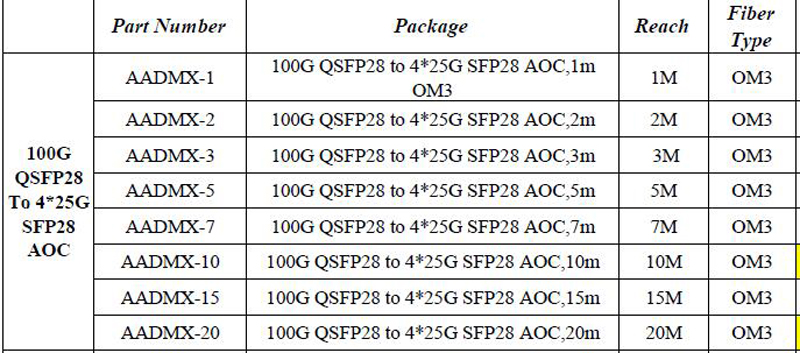

6.Ordering Information
