12G SDI Multi Function Converter

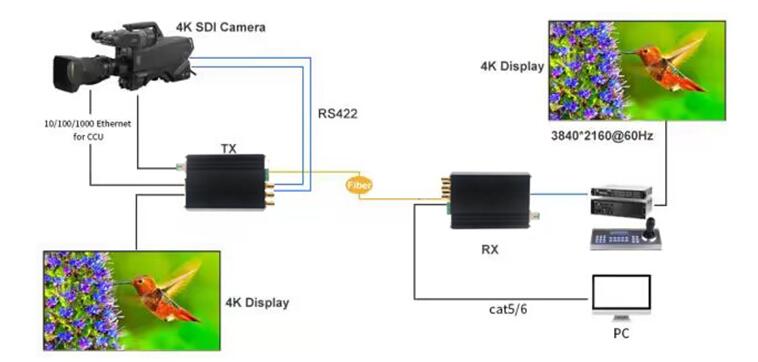

12G-SDI Fiber Converter supports 12G Video (audio embedded) &1Ch Gigabit Ethernet, Bidi Audio&RS422 transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output.  12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P，1080I, 720P.

Features:

1.Each SDI channel includes 8-channel audio embedded

2.Automatic cable equalization to ensure signal integrity

3. Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

4.Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps

5.Directly compatible with 12G/6G/3G-SDI camera systems

6.Long transmission capability up to 80 km

7.Supports RS485/RS422 and Tally

8.Supports 1Ch 10/100/1000M Ethernet

9.Supports Bi-directional stereo Audio

10.Full digital non-compression broadcast level transmission;

11.Super optic dynamic range and free of adjustment;

12.Supports 4K*2K(3840*2160@60Hz),1080P,1080I,720P.
