56Gbps QSFP+ AOC
- Brand: NVOC
- Type: NV-56G QSFP+ AOC
Ø Low-latency and high-speed interconnections for high performance computing(HPC)
Ø 40G Ethernet SR4
Ø Infiniband 56Gbase QSFP+
Ø Other high-throughput data transmission network
Ø Storage area Network(SAN)
2. Features
Ø Quad Small Form-factor Pluggable (QSFP)
Ø 40GBASE-SR4 compliant
Ø FDR (Infiniband) compliant
Ø Bi-directional parallel link
Ø 16Gb/s per lane, x4 channels
Ø Up to 100m
Ø Low profile connectors
Ø Low power consumption
Ø Bundle multi-mode fiber array
Ø 850nm VCSEL four array
Ø PIN diode four array
Ø Hot-Pluggable
Ø I2C management interface
Ø From 0 to 70 degree case temperature
Ø 3.3V power supply voltage
Ø Electrical 38-pin connector
3. Description
A4FM3-XXX series are active optical cables (AOC) that allows bi-directional 56Gbps transmission suitable for Ethernet 40GBASE-SR4 and InfiniBand FDR application and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.
4. Standard
Ø Compliant with IEEE 802.3ba-2010,Annex 86A for 40GBASE-SR4
Ø Compliant with InfiniBand FDR
Ø Compliant with QSFP MSA(SFF-8436)
Ø RoHS Compliant:lead-free

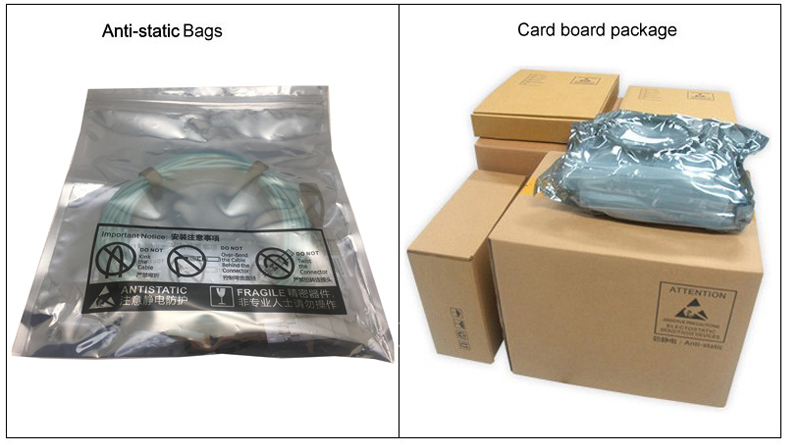

5.Package

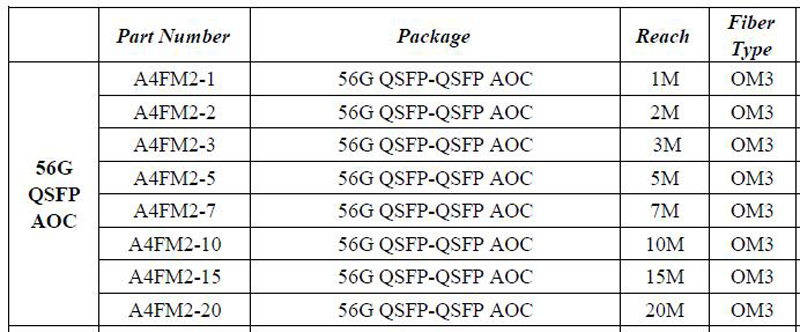

6.Ordering Information
