2C Plug&Socket Connector
- Brand: NVOC
- Type: NV-2C P+S

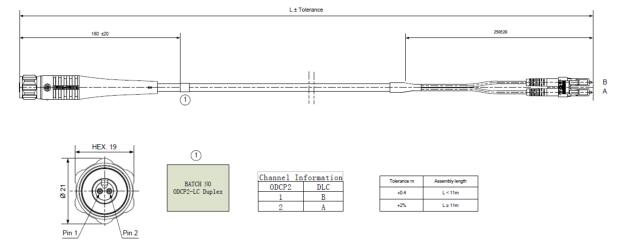

1.Outline Drawing
2.Fiber connector performance
|
Specifications |
ODCConnector |
LCConnector |
|
Insertion loss (dB) IEC 61300-3-34 |
typ. ≤ 0.25 |
typ. ≤ 0.25 |
|
97% ≤ 0.35 |
97% ≤ 0.35 |
|
|
durability |
min. 1000 mating cycles |
min. 1000 mating cycles |
|
compliance |
IEC 61754-20, TIA 604-10-A |
IEC 61754-20, TIA 604-10-A |
3.Fiber technology requirements
|
Item |
Requirement |
|
Mode-field diameter |
9µm |
|
Cladding diameter |
125 ±2.5µm |
|
Coating diameter |
245 ±10 µm |
|
Mode fiber or Cladding concentricity error |
≤1.5µm |
|
Corenon-circularity |
≤6% |
|
Cladding non-circularity |
≤ 1 % |
|
Coatingnon-circularity |
≤ 1 % |
|
Meet standard |
ITU G.651, IEC 60793-2-10TypeA1a, |
|
Cable Diameter |
5.5mm |
|
Pos. |
Number of elements / Description |
Size |
Options/Notice |
|
1 |
1Optical fiber |
245/400µm |
Fiber type, buffered |
|
2 |
1 Tight tube |
0.9mm |
Colour |
