25Gbps SFP+ AOC

  View:
  • Brand:    NVOC
  • Type:    NV-25G SFP+ AOC
  • Order Online
Introduction
 1. Applications

Ø  25GBASE-SR Ethernet

Ø  Servers,switches,storage and host card adapters

2. Features

Ø  Electrical interface compliant to SFF-8431

Ø  850nm VCSEL laser and PIN photo-detector

Ø  Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF

Ø  Digital diagnostics functions are available via the I2C interface

Ø  Operating case temperature Commercial: 0°C to +70 °C

Ø  +3.3V single power supply

Ø  Power consumption less than 1W

Ø  RoHS compliant

Ø  Password protection for A0h and A2h

3. Description

 A2AMX-XXX SFP28 Active Optical Cable (AOC) is a 25Gbps solution to25G Ethernet, and datacenter. The integrated cable transmits 25Gbps data in each direction over MMF with distance up to 100m. The AOC is SFP+ MSA compliance, low power consumption and lightweight.

4. standard

Ø  Compliant with SFF-8431 and SFF-8432

Ø  Compliant with SFF-8472 Rev 10.2

Ø  RoHS Compliant

5. Package

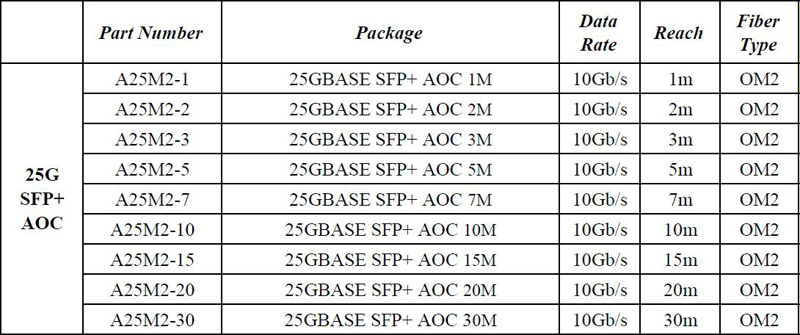

6.ordering information
