1. Applications

Ø  Low-latency and high-speed interconnections for high performance computing(HPC)

Ø  40G Ethernet SR4

Ø  Other high-throughput data transmission network

Ø  Storage area Network(SAN)

Ø  QSFP+ to 4*SFP+ module

Ø  QSFP+ Maximum Aggregate Data Rate 40Gbps

Ø  4*SFP+ Maximum Aggregate Data Rate 4*10Gbps

Ø  QDR,DDR,SDR(Infiniband)

Ø  Bi-directional pararell link

Ø  10Gb/s per lane,X4 channels

Ø  Up to 100m

Ø  Low profile connectors

Ø  Low power consumption

Ø  Bundle multi-mode fiber array

Ø  850nm VCSEL four array

Ø  PIN diode four array

Ø  Hot-Pluggable

Ø  I2C management interface

Ø  From 0 to 70 degree case temperature

Ø  3.3V power supply voltage

Ø  Electrical 38-pin connector

A5CMX-XXX series are active optical cables (AOC) that allows bi-directional 40Gbps to 10Gbps transmission suitable for high performance computing (HPC)clustering and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.

Ø  Compliant with IEEE 802.3ba-2010,Annex 86A for 40GBASE-SR4

Ø  Compliant with InfiniBand EDR,FDR,QDR,DDR,SDR

Ø  Compliant with QSFP MSA(SFF-8436)

Ø  Compliant with SFP MSA(SFF-8431)

Ø  RoHS Compliant:lead-free

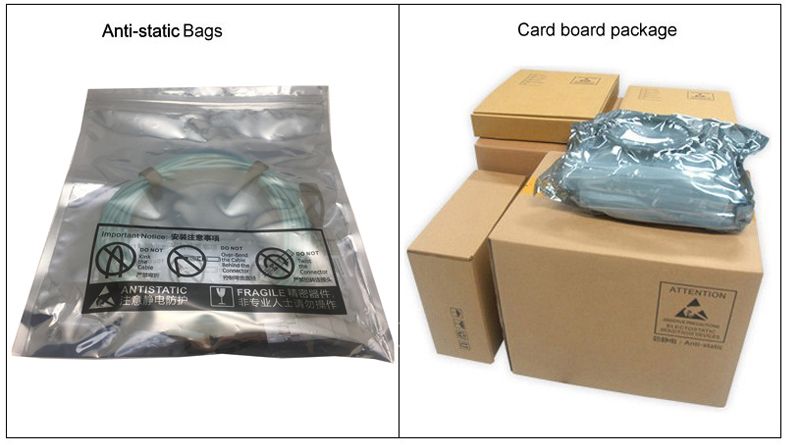

5. Package

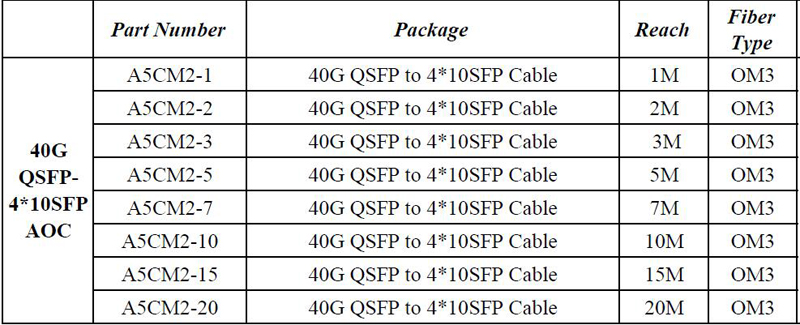

6.Ordering Information
