Features:

1.4 lanes MUX/DEMUX design

2.Support 100GBASE-ZR4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps LAN WDM EML laser and PIN receiver with SOA

3.Aggregate bandwidth of > 100Gbps

4.Duplex LC connectors

5.Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module  electrical standard ITU-T G.959.1-2012-02 standard

6.Single +3.3V power supply operating

7.Built-in digital diagnostic functions

8.Temperature range 0°C to 70°C

9.RoHS Compliant Part

10.Support FEC(Forward Error Correction)

Applications:

100GBASE-ZR4

Description:

NV-Q28-S31L-100D is designed for 100km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter-face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector

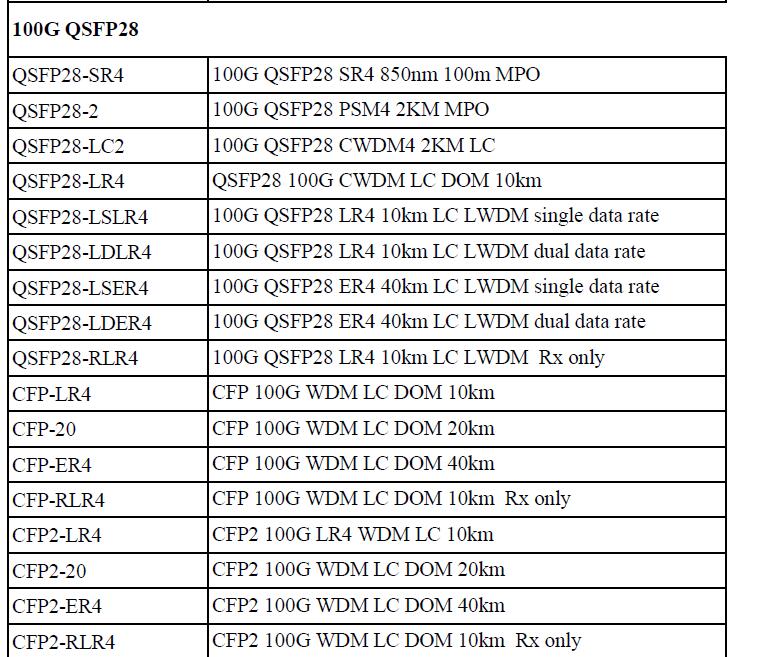

Ordering Information
