100G QSFP28 to 4*SFP28 DAC
- Brand: NVOC
- Type: NV-100G QSFP28 to 4*SFP28
Ø 100GE/25 Gigabit Ethernet
Ø Switches, Routers, and HBAs
Ø Data Center Network
2. Features
Ø Supporting 100 Gbps to 4 x 25 Gbps
Ø Support data rates : 25.78Gb/s (per channel)
Ø IEEE 802.3bj 100GEBASE-CR4 and P802.3by compliant
Ø Compatible to SFP28 MSA and QSFP28 MSA
Ø Compatible to SFF-8402, SFF-8432 and SFF8665
Ø Maximum aggregate data rate: 100 Gb/s (4 x25Gb/s)
Ø High-Density QSFP28 38-PIN and 4x SFP28 20-PIN Connector
Ø Temperature Range: 0~ 70 °C
Ø Copper link length up to 2m
Ø Power Supply :+3.3V
Ø Low crosstalk
Ø I2C based two-wire serial interface for EEPROM signature which can be customized
Ø Operating Temperature: 0~ 70 °C
Ø ROHS Compliant
3. Description
100G QSFP28 Passive Copper Cables(P7D30-XXX) assemblies are high performance，cost effective for SFP28 and QSFP28 equipment interconnects . The Hybrid cables are compliant with SFF-8402 and SFF-8665 specifications. It is offer a low power consumption，short reach interconnect applications. The cable each lane is capable of transmitting data at rates up to 25Gb/s, providing an aggregated rate of 100Gb/s.
4. standard
Ø IEEE 802.3bj
Ø InfiniBand EDR
Ø QSFP28 MSA
Ø ROHS Compliant

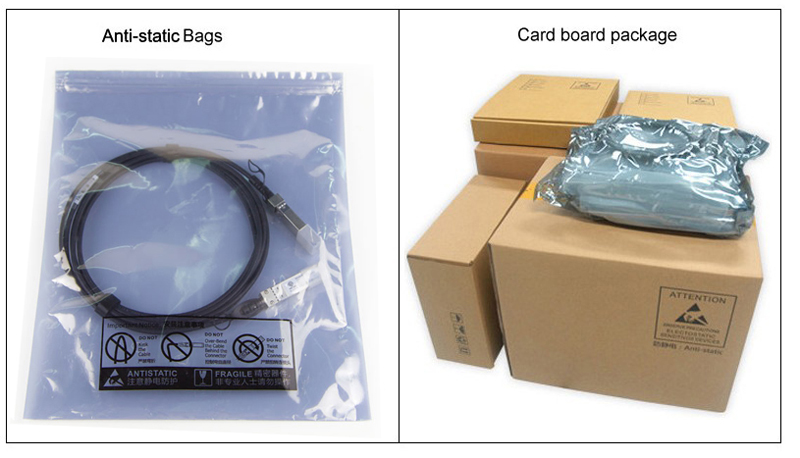

5. Package

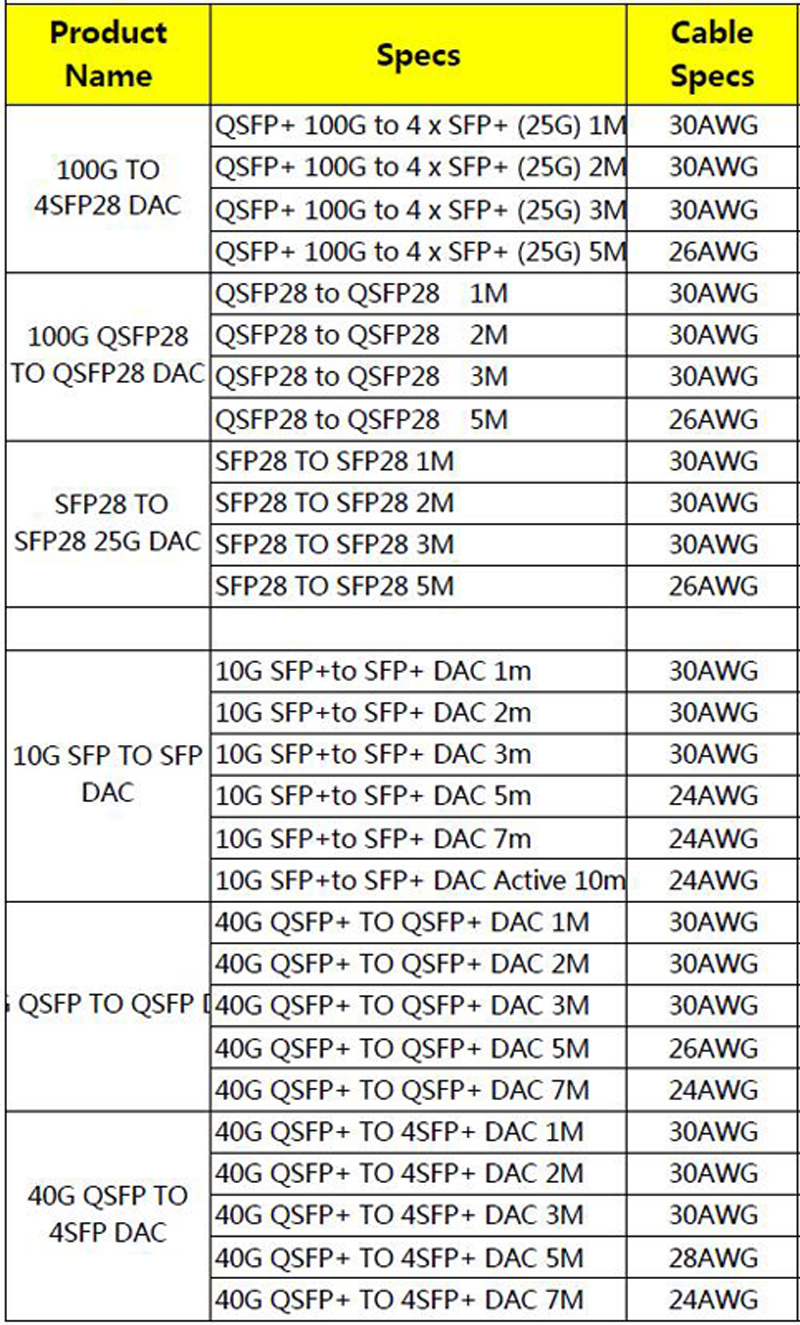

6.Ordering Information
