100G QSFP28+ DAC
- Brand: NVOC
- Type: NV-100G QSFP28+ DAC
Ø 100 Gigabit Ethernet
Ø Fiber Channel over Ethernet
Ø Data storage and communication industry
Ø Switch/router/HBA
Ø Enterprise network
Ø SAN
Ø Data Center Network
2. Features
Ø QSFP28 conforms to the Small Form Factor SFF-8665
Ø 4-Channel Full-Duplex Passive Copper Cable Transceiver
Ø Support for multi-gigabit data rates :25.78Gb/s (per channel)
Ø Maximum aggregate data rate: 100Gb/s (4 x 25.78Gb/s)
Ø Copper link length up to 3m (passive limiting)
Ø High-Density QSFP 38-PIN Connector
Ø Power Supply :+3.3V
Ø Low power consumption: 0.02 W (typ.)
Ø I2C based two-wire serial interface for EEPROM signature which can be customized
Ø Temperature Range: 0~ 70 °C
Ø ROHS Compliant
3. Description
100G QSFP28 Passive Copper Cables(ND-P7D30-XXX) are high performance，cost effective I/O solutions for 100G LAN, HPC and SAN applications. The QSFP28 passive copper cables are compliant with SFF-8436. It is offer a low power consumption，short reach intercom- nect applications. The cable each lane is capable of transmitting data at rates up to 25.78Gb/s, providing an aggregated rate of 100Gb/s.
4. Standard
Ø IEEE 802.3bj
Ø InfiniBand EDR
Ø QSFP28 MSA
Ø ROHS Compliant

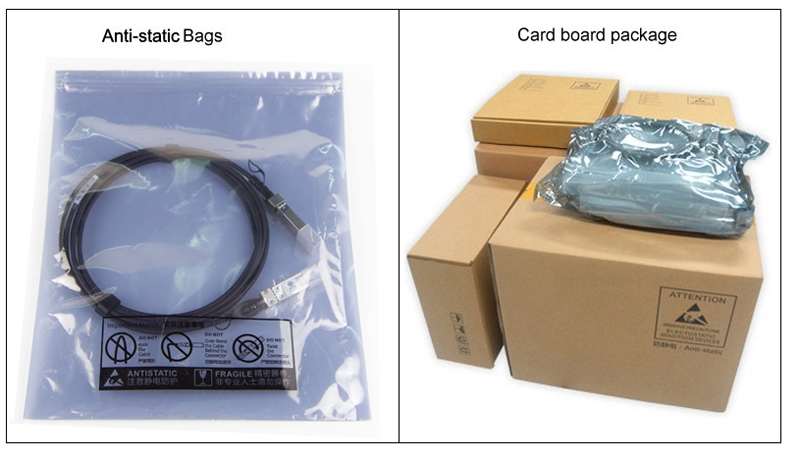

5. Package

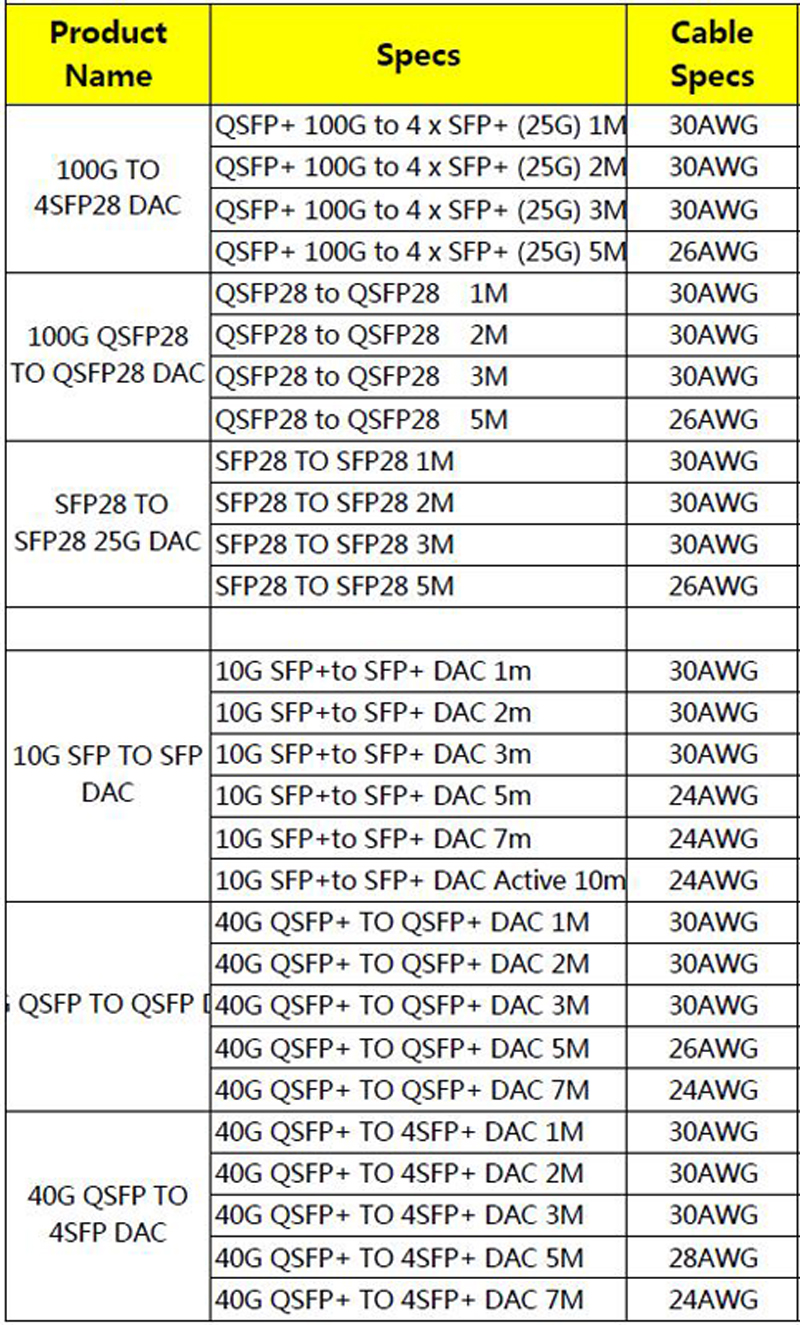

6.Ordering Information
