Commercial-grade HDMI extender over fiber is used to extend the transmission of HDMI audio and video signals, are usually used in the HDMI cable limit length cannot meet the transmission distance.This product transmits HDMI audio and video signal to 20KM user through the fiber, up to 120KM, equipment supports TCP/IP network protocol, can realize one transmitter to multiple receiver transmission through ethernet switches, remote transmission while supporting local HDMI output, support infrared return transmission, independent audio transmission, remote control of signal source (host-KVM, TV box-IR infrared), to ensure the stability of the signal while reducing the cost for the user.the EDID built-in audio of commercial-grade HDMI extender over fiber greatly improves the compatibility of the device.The equipment has a long transmission distance, low use cost, convenient installation, good compatibility, and is a stable and efficient transmission mode.Widely used in information release system, security monitoring, video conferencing system, HD teaching system, LCD splicing Large screen, LED splicing screen, engineering projection fusion and other projects.

Features

1.HDMI video support maximum resolution 1920 * 1080P @60Hz downward compatibility

2.Integrated HDCP decrypt engine to receive protected audio and video content

3.EDID transparent transmission mode, automatically matching the signal source and display equipment

4.Transmitter supports the local loop out monitoring function

5.Support 24bit-embedded digital audio

6.Support independent analog of 3.5mm audio

7.Support audio embedding/unembedding function

8.Support KVM function (keyboard and mouse)

9.Support reverse IR infrared function

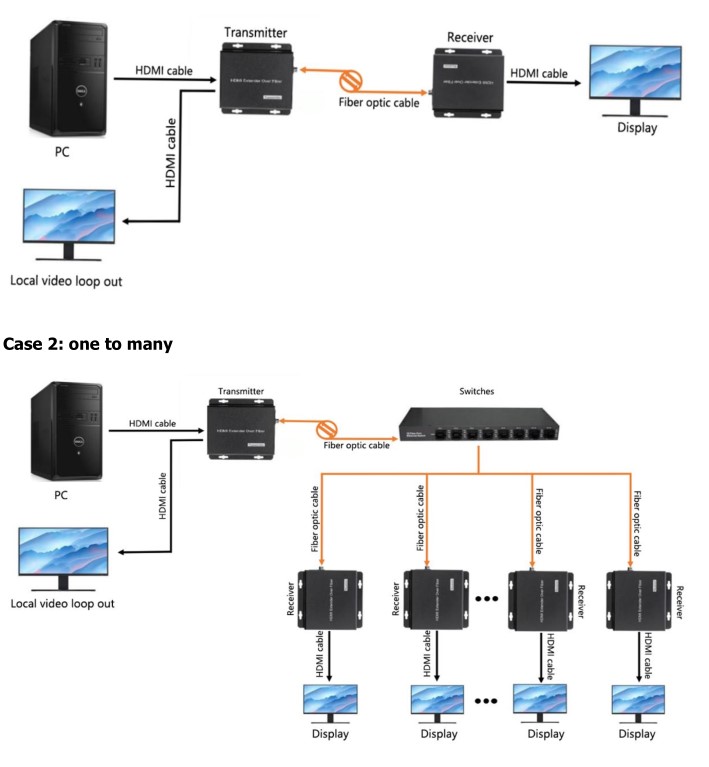

10.Support point to point, point to many transmission through ethernet switches (up to 255 points)

11.Support single fiber/dual fiber (optional)

12.Single mode/multi-mode compatibility, multi-mode transmission distance of 1KM, single-mode transmission distance of 20KM, can customize up to 120km

13.Built-in ESD electrostatic protection circuit, simple to install, plug and play

14.The equipment has a differentiated transmitter (signal source), a receiver (display end)
